The Accu‑Scope EXC‑120 is a versatile compound microscope designed for educational, clinical, and laboratory use, offering clear DIN achromatic optics and a wide field of view. It features LED illumination, ergonomic coaxial coarse and fine focusing, and supports monocular, binocular, or trinocular heads. Additionally, it accommodates a variety of objectives and optional digital cameras, making it suitable for both observation and imaging applications.
Accu-Scope EXC-120
Durable compound microscope with clear optics and LED illumination
Accu-Scope EXC-120 Specifications
-
Optics & Magnification
-
Optical system: DIN, 160 mm tube length with anti-mold/anti-fungus treatment.
-
Objectives (varies by model): Achromat 4×, 10×, Semi-Plan 40×R*, 100×R* oil (*spring-loaded).
-
Eyepieces: Wide field WF10×/18.5 mm (accepts 19 mm reticles; pointer in one).
-
Total magnification range typically covers ~40× up to ~1,000× depending on objectives installed.
Mechanical & Viewing Components
-

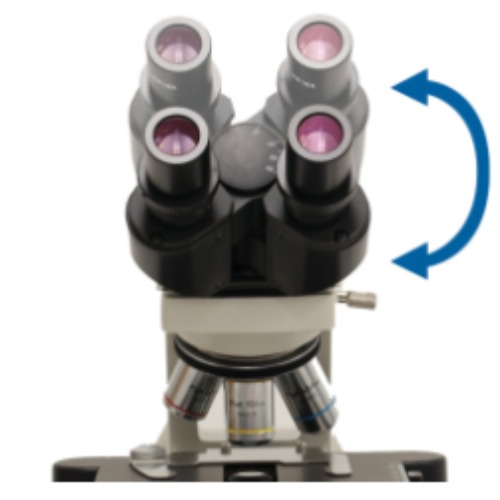

Viewing head options: monocular, binocular, or trinocular Seidentopf head, inclined ~30°, interpupillary adjustment ~48–75 mm.
-
Nosepiece: Rear-facing, quadruple with ball-bearing and positive click stops.
-
Stage: Rackless mechanical stage ~150 × 139 mm with X-Y travel ~75 × 32 mm and right-hand controls; vernier scale to 0.1 mm.
Illumination & Condenser
-

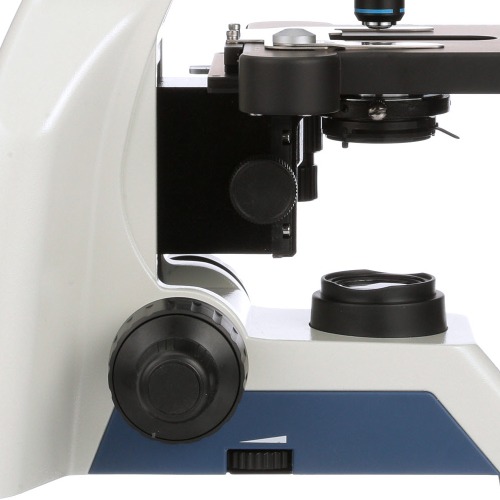

Illumination: Variable LED transmitted light (rated ~20,000 hr), UL-approved; 110/240 V.
-
Condenser: Abbe N.A. 1.25 with iris diaphragm and swing-out filter holder.
Focus & Stand
-

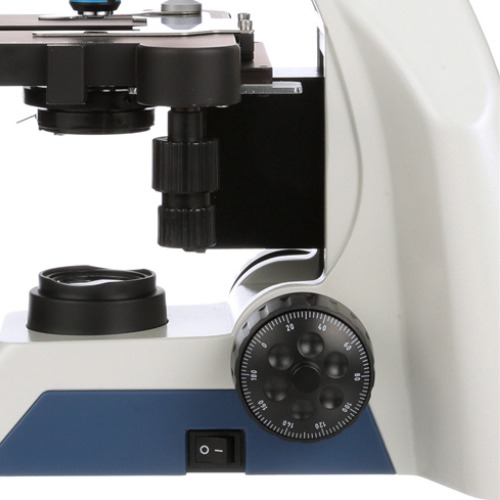

Focusing: Coaxial coarse and fine with adjustable tension and all-metal gears; built-in fixed focus stops.
-
Stand: Rugged cast aluminum alloy with built-in handle and cord wrap.
Additional Details
-
Observation methods: Brightfield standard; some models support phase contrast, darkfield, and simple polarization.
-
Accessories typically include dust cover, immersion oil, manual; eyepieces are classroom-secure (locked-in).
-
Weight approx. 15 lbs (standard binocular).
-
For further information, it is recommended to reach out to a representative from Nuhsbaum. Our representatives are knowledgeable about the Accu-Scope EXC-120 offerings and can provide expert guidance and support in selecting the right configuration to meet specific research needs.
Accu-Scope EXC-120 Description
The Accu-Scope EXC-120 is a reliable compound microscope designed for educational, clinical, and routine laboratory environments. It is known for its durable construction and user-friendly design, making it well suited for frequent use by students or professionals.
It features DIN achromatic objectives that deliver clear, sharp images across a wide field of view, along with built-in LED illumination for consistent, energy-efficient lighting. Ergonomic coaxial coarse and fine focus controls allow for precise focusing and comfortable operation during extended viewing sessions.
The EXC-120 is available in monocular, binocular, and trinocular configurations and supports optional accessories such as digital cameras for imaging and documentation. This flexibility makes it a practical choice for both basic microscopy and more advanced observational or teaching needs.
For further information, it is recommended to reach out to a representative from Nuhsbaum. Our representatives are knowledgeable about the Accu-Scope EXC-120 offerings and can provide expert guidance and support in selecting the right configuration to meet specific research needs.
