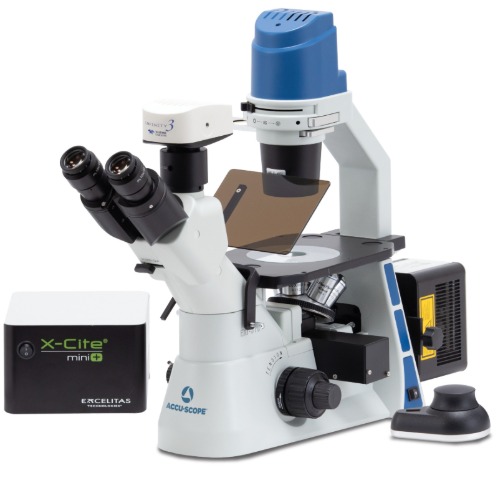

The Accu-Scope EXI-310 is a professional-grade inverted trinocular microscope engineered for advanced cell culture and live-cell analysis. It delivers high-performance, infinity-corrected optics with versatile configurations including brightfield, phase contrast, and optional epi-fluorescence for demanding research applications. With precision LED illumination, robust construction, and a dedicated camera port, it provides exceptional imaging capability for modern teaching and research laboratories.

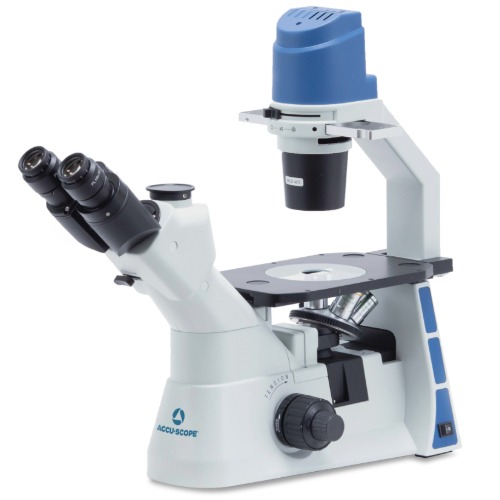

Accu-Scope EXI-310
Professional inverted microscope delivering advanced imaging for cell culture research
Accu-Scope EXI-310 Specifications
Optical & Imaging
-
Optical system: AIS infinity system with anti‑fungal design (f = 180 mm)
-
Observation methods: Brightfield, phase contrast (optional epi‑fluorescence on FL models)
-
Viewing head: Trinocular, inclined at 45°; interpupillary distance 54‑75 mm; Siedentopf type
-
Eyepieces: WF10×/22 mm focusable with eye cushions (optional 15×/16 mm, 20×/12.5 mm)
-
Camera port: Standard trinocular eyepiece/camera port (100/0:80/20)
Objectives & Nosepiece
-
Nosepiece: Side‑facing quintuple nosepiece
-
Standard objectives:
-
Phase models — LWD Plan 4×, Plan Phase 10× & 20×
-
Achromat models — Plan Achromat 4×, 10× & 20×
-
-
Optional objectives: Additional Plan, Plan Phase, Plan Fluor, Plan Fluor Phase objectives available
Stage & Condenser
-
Stage: Fixed plain stage 160 × 250 mm (glass insert plate); optional mechanical stage (120 × 78 mm)
-
Condenser: ELWD condenser, N.A. 0.3, W.D. 72 mm
Illumination & Filters
-
Illumination: 5 W LED with variable intensity control; bulb rated > 25,000 h; universal 110‑240 V supply
-
Phase slider: Pre‑centered 4×/10× & 20×/40× phase annuli plus brightfield position (phase models)
-
Fluorescence: Optional epi‑fluorescence illuminator and filter cubes (on FL models)
Focusing & Construction
-
Focus: Coaxial coarse/fine focusing knobs with tension adjustment; brass gears
-
Stand: Cast alloy aluminum for stability
Accessories & Warranty
-
Included: Interference and ground glass filters (phase models), dust cover, manual
-
Warranty: 5‑year limited (parts, labor, electronics); 1‑year LED bulb warranty
Dimensions & Weight (typical)
-
Size: ~515 mm × 248 mm × 473 mm
-
Weight: ~21.5 lb (~9.8 kg)
For further information, it is recommended to reach out to a representative from Nuhsbaum. Our representatives are knowledgeable about the Accu-Scope EXI-310 offerings and can provide expert guidance and support in selecting the right configuration to meet specific research needs.
Accu-Scope EXI-310 Description
The Accu-Scope EXI-310 is a professional inverted trinocular microscope designed for advanced cell culture, live-cell imaging, and routine laboratory research. Its robust construction, featuring a cast aluminum stand, ensures stability during precise microscopy work, while the 45° inclined Siedentopf trinocular head allows comfortable viewing for extended periods. The microscope supports a wide range of observation techniques, including brightfield, phase contrast, and optional epi-fluorescence, making it highly versatile for biological and clinical applications.
Optically, the EXI-310 utilizes an infinity-corrected system with high-quality objectives, including Plan Achromat, Plan Phase, and optional Plan Fluor lenses, providing excellent resolution, flatness, and color fidelity across the field of view. The side-facing quintuple nosepiece accommodates multiple objectives for rapid switching, while the LED illumination system delivers bright, uniform light with adjustable intensity and long bulb life. For phase contrast models, pre-centered phase annuli enable precise imaging of transparent specimens without additional adjustments, and fluorescence-capable models can incorporate filter cubes for multichannel imaging.
The microscope also integrates user-friendly features for modern lab workflows. Coaxial coarse and fine focus knobs with tension adjustment allow precise focusing, and the fixed stage or optional mechanical stage facilitates sample manipulation. A dedicated trinocular camera port supports digital imaging, enabling documentation, analysis, and teaching applications. With accessories such as filters, dust cover, and a five-year limited warranty, the EXI-310 combines durability, optical excellence, and flexibility, making it a powerful tool for research, education, and clinical laboratories alike.
For further information, it is recommended to reach out to a representative from Nuhsbaum. Our representatives are knowledgeable about the Accu-Scope EXI-310 offerings and can provide expert guidance and support in selecting the right configuration to meet specific research needs.
