The Accu-Scope EXI-410 is a cutting-edge inverted microscope designed for advanced live-cell and tissue culture research, providing unparalleled optical precision through its infinity-corrected optical system. Its long-working-distance objectives and ergonomically engineered mechanics allow seamless, non-invasive imaging of delicate samples in culture vessels. Fully modular, it supports high-performance phase contrast, digital HD imaging, and sophisticated fluorescence applications, making it a versatile, future-proof platform for cutting-edge scientific discovery.

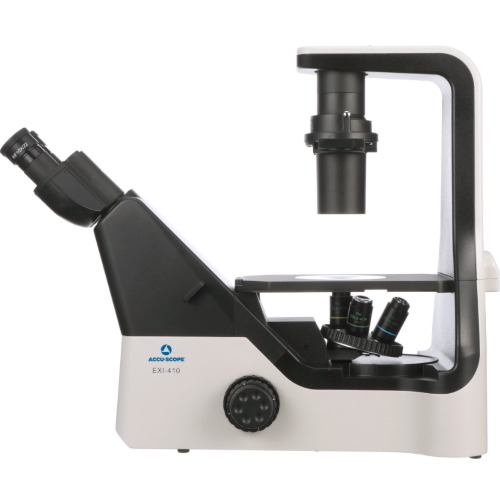

Accu-Scope EXI-410
High-precision inverted microscope for advanced live-cell imaging
Accu-Scope EXI-410 Specifications
Optical & Mechanical
-
Optical system: Infinity optical system, f = 200 mm (excellent image quality)
-
Viewing head: Seidentopf binocular or trinocular viewing head, 45° inclined, interpupillary adjustment 48–75 mm; eyetube rotation raises/lower eyepieces by ~35 mm for comfort
-
Eyepieces: Widefield WF10×/22 mm (standard); optional WF15× or WF20×
-
Nosepiece: Quintuple revolving turret for multiple objectives
-
Objectives: Long working distance (LWD) Plan Achromat and Plan Phase; optional LWD Semi‑Apochromat and full Plan Apochromatic objectives (e.g., 4×, 10×, 20×, 40×, up to 100× oil)
-
Focusing: Coaxial coarse & fine focus, fine precision ~0.002 mm; travel ~18.5 mm total
Stage & Specimen Handling
-

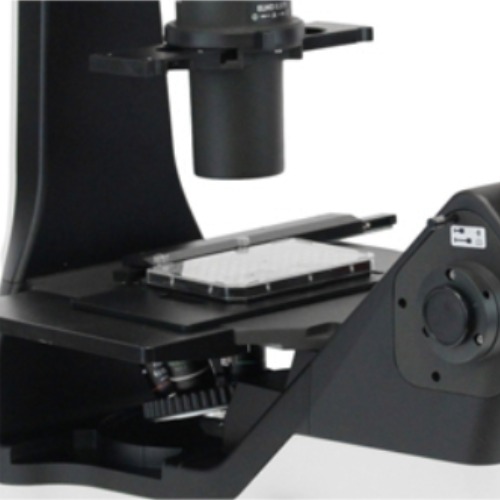

Stage: Fixed plain stage ~170 × 250 mm (expandable to ~300 mm with auxiliary pieces)
-
Optional mechanical stage: ~129 × 83 mm movement range (for plates/dishes/slides)
-
Sample holders (optional): Holders for Petri dishes (35 mm – 90 mm), slides, Terasaki and hemocytometer plates
Condenser & Illumination
-
Condenser: Extra‑long working distance condenser, NA 0.30, WD ~75 mm (great for culture flasks)
-
Transmitted illumination: 3 W S‑LED with adjustable intensity and long life (~50,000 h)
Contrast & Imaging Methods
-
Observation methods: Brightfield, phase contrast (with pre‑centered slider), emboss contrast (optional)
-
Fluorescence (on FL models): Integrated epi‑fluorescence LED with up to 3 wavelengths; 3‑position filter cube turret and contrast shield to improve signal
-
Camera integration: Side camera port with selectable light split (varies by model)
Physical & Electrical
-
Power: Universal 100–240 V with LED illumination ~3 W consumption
-
Weight: Approx. ~30 lb (PH models) to ~34 lb (FL models)
For further information, it is recommended to reach out to a representative from Nuhsbaum. Our representatives are knowledgeable about the Accu-Scope EXI-410 offerings and can provide expert guidance and support in selecting the right configuration to meet specific research needs.
Accu-Scope EXI-410 Description
The Accu-Scope EXI-410 is a professional, research-grade inverted microscope engineered for high-performance live-cell and tissue culture imaging. Built on an infinity-corrected optical system, it delivers exceptional clarity, contrast, and color fidelity, making it well suited for demanding laboratory environments. Its inverted design allows direct observation of cells in culture dishes, flasks, and multi-well plates without disturbing samples.
Designed with usability and precision in mind, the EXI-410 features long-working-distance objectives, an extra-long working distance condenser, and smooth coaxial coarse and fine focusing for precise control. The ergonomic viewing head, widefield eyepieces, and stable mechanical construction support extended observation sessions with minimal fatigue. A large, fixed stage with optional mechanical and vessel-specific holders accommodates a wide range of sample formats.
The EXI-410’s modular architecture allows it to scale with research needs, supporting brightfield, phase contrast, and optional fluorescence imaging. Trinocular configurations and dedicated camera ports enable seamless digital documentation and live imaging. With its robust build quality, optical performance, and upgrade flexibility, the Accu-Scope EXI-410 stands out as a versatile, future-ready platform for advanced cell biology and life science research.
