ZEISS Axiolab 5
Experience Exceptional Imaging Performance with the ZEISS Axiolab 5 Microscope
The ZEISS Axiolab 5 is designed to meet the needs of professionals and researchers across a range of industries and applications. Its advanced optics and ergonomic design make it an ideal choice for routine laboratory work, research, and production line analysis. The microscope delivers exceptional imaging performance, with clear and accurate images that enable users to observe samples with greater detail and clarity.
In addition to its high-quality imaging performance, the ZEISS Axiolab 5 also offers advanced digital imaging capabilities. With the optional ZEISS Axiocam 208 color or mono camera, users can capture digital images that accurately reflect what they see through the eyepieces. The camera is designed to provide correct scaling information automatically, ensuring that users get accurate measurements and data from their samples.
What’s more, the ZEISS Axiolab 5’s digital imaging capabilities can be used as a stand-alone operation, without the need for a PC or any additional software. This makes it a highly efficient and convenient tool for professionals and researchers who need to capture and analyze data quickly and easily.
Overall, the ZEISS Axiolab 5 is a highly versatile and reliable microscope that offers exceptional imaging performance and advanced digital imaging capabilities. Its customizable options, ergonomic design, and user-friendly controls make it an ideal choice for a wide range of applications, from educational institutions to industrial settings.
ZEISS Axiolab 5 Specifications
- Magnification range: The ZEISS Axiolab 5 has a magnification range of 1.25x to 100x, making it suitable for a wide range of applications. This magnification range allows users to observe samples with varying levels of magnification, from an overview to a detailed examination of the sample.
- Objectives: The microscope features six objectives, including EC Epiplan 2.5x/0.08, EC Epiplan 5x/0.12, EC Epiplan 10x/0.25, EC Epiplan 20x/0.4, EC Epiplan 50x/0.75, and EC Epiplan 100x/1.25 oil. These objectives are designed to provide clear and accurate images with varying degrees of magnification, ensuring that users can observe their samples with greater detail and clarity. A number of objective options are also available.
- Eyepieces: The ZEISS Axiolab 5 has 10x/22 mm eyepieces, which provide a comfortable viewing experience for users. These eyepieces are designed to provide clear and accurate images and are compatible with a range of accessories. Optional eyepieces are also available.

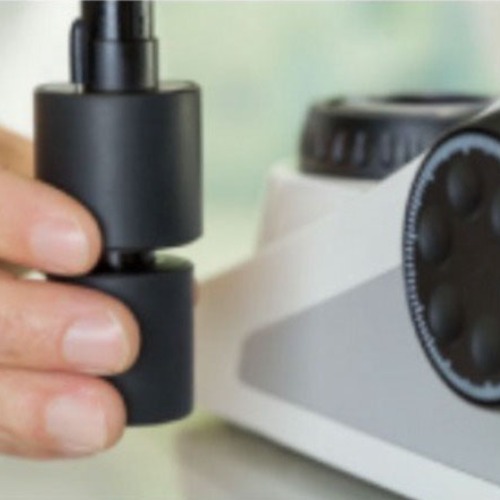

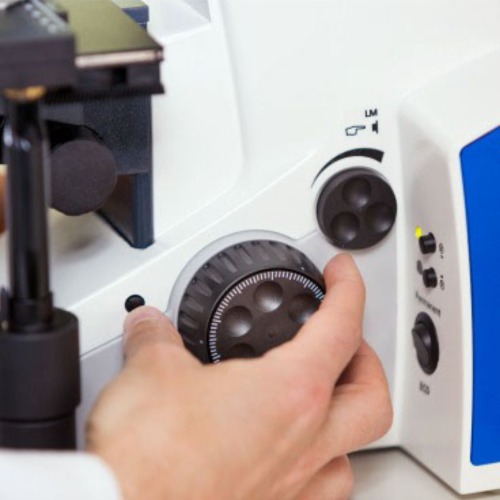

- Focusing: The microscope features a coaxial coarse and fine focus system with an adjustable focus stop. This system makes it easy for users to focus on their samples quickly and accurately, while the adjustable focus stop ensures that the sample remains in focus even if the focus knob is turned too far.
- Illumination: The ZEISS Axiolab 5 is powered by a halogen light source and comes with adjustable intensity and field diaphragm. This illumination system provides bright and consistent lighting for the sample, ensuring that users can observe their samples with greater clarity and detail.
- Stage: The 160 mm x 142 mm mechanical stage of the microscope comes with an adjustable slide holder. This feature provides excellent stability and allows for precise sample movement, making it easier for users to observe their samples and take measurements.
- Condenser: The EC Epiplan-Neofluar 0.3/0.45 condenser of the microscope comes with an adjustable aperture diaphragm. This feature provides excellent contrast and resolution, allowing users to observe their samples with greater detail and clarity.
- Dimensions and weight: The ZEISS Axiolab 5 has dimensions of 490 mm x 535 mm x 470 mm and weighs 21 kg. Its compact design makes it easy to use and transport, while its robust construction ensures its durability and longevity.
ZEISS Axiolab 5 Description
The ZEISS Axiolab 5 microscope is designed to be adapted to your lab routine, with clever ergonomics that provide crisp images in true color. Users have full control over the microscope, including the ability to adjust parameters for crisp images and to find a region of interest simply. The ergonomic design of the microscope allows for easy handling and relaxed lab work, with an ergonomic snap button that makes it simple to capture images.
The microscope also features an eco mode and light management system, which helps to increase efficiency in routine lab work while also reducing energy consumption. Correct scaling information is added automatically, and digital documentation is made easy with the addition of the ZEISS Axiocam 208 color camera.
The ZEISS Axiolab 5 also includes an ergonomic user concept, with parameters that can be adjusted to achieve the best possible imaging performance. The light manager allows for easy control of the illumination, while the adjustable aperture diaphragm on the EC Epiplan-Neofluar 0.3/0.45 condenser ensures that contrast and resolution are optimized for each sample.
In addition to its imaging capabilities, the ZEISS Axiolab 5 is designed for easy handling and ergonomic use, with a focus on user comfort and efficiency. Simply press the ergonomic snap button to capture images of your sample, or use the region of interest feature to quickly find the area of the sample you want to observe.
Overall, the ZEISS Axiolab 5 is a versatile and reliable microscope that is ideal for a wide range of applications, from routine lab work to research and production line analysis. Its advanced optics, ergonomic design, and customizable options make it an excellent choice for professionals and researchers who demand the best in imaging technology.
