The Discover Echo Cellcyte 1 is a high-throughput live-cell imaging and analysis system that operates directly inside a laboratory incubator, allowing researchers to monitor living cells in real time without disturbing samples. It supports up to six vessels simultaneously, includes fluorescence imaging and automated analysis software, and is designed for applications such as cell counting, apoptosis studies, spheroid growth, and drug-response monitoring.

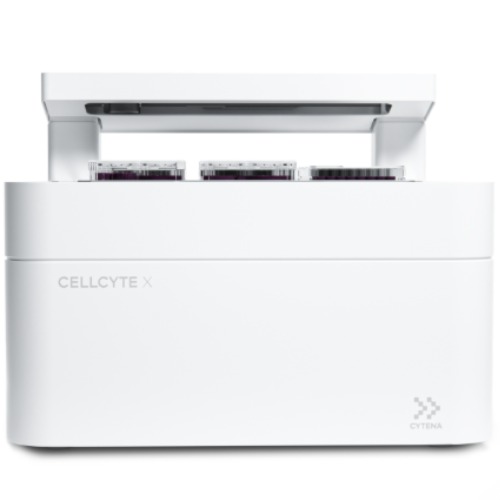

Discover Echo Cellcyte 1
Revolutionizing real-time live cell discovery
Discover Echo Cellcyte 1 Specifications
- Live-Cell Imaging: Continuous real-time monitoring inside a standard incubator
- Imaging Modes: Brightfield, fluorescence, and Enhanced Contour imaging
- Objectives: 4× and 10× Olympus objectives
- Camera Resolution: 5 MP CMOS sensor with high-definition image capture
- Fluorescence Capability: Blue, Green, and Red fluorescence channels
- Capacity: Simultaneous imaging of up to 6 culture vessels or plates
- Automation: Scheduled time-lapse imaging with unattended operation
- Software Features: Automated confluence analysis, cell counting, graphing, and data export
- Data Export Formats: TIFF, PNG, AVI, CSV, XLSX
- Environmental Compatibility: Operates in humidified incubators up to 95% humidity
- Applications: Cancer research, stem cell analysis, cytotoxicity assays, spheroid studies, transfection monitoring, and immune-cell tracking

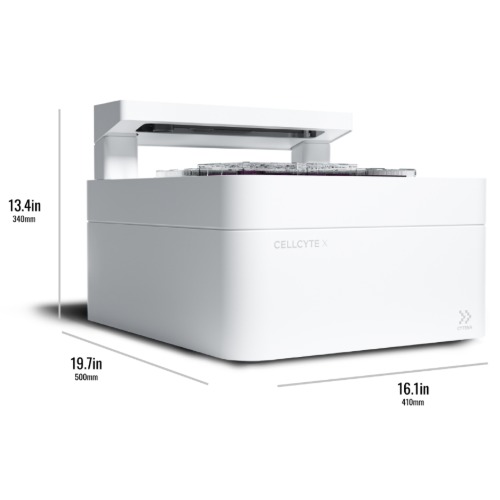

- System Design: Compact open-frame architecture for easy incubator integration and maintenance
For further information, it is recommended to reach out to a representative from Nuhsbaum. Our representatives are knowledgeable about the Discover Echo Cellcyte 1 offerings and can provide expert guidance and support in selecting the right configuration to meet specific research needs.
Discover Echo Cellcyte 1 Description

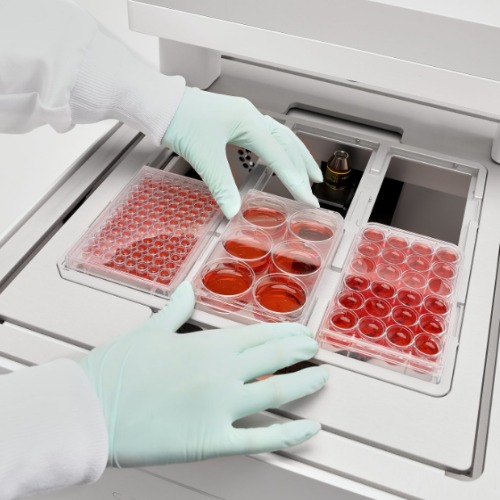

The Discover Echo Cellcyte 1 is an advanced live-cell imaging platform engineered for continuous, real-time observation of cell cultures directly inside a standard laboratory incubator. By eliminating the need to remove samples for imaging, the system preserves stable environmental conditions while reducing contamination risks and experimental disruption. Its compact open-frame design allows seamless integration into existing laboratory workflows and incubator setups.

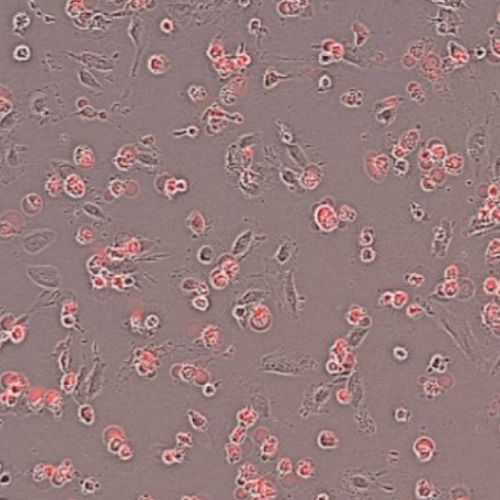

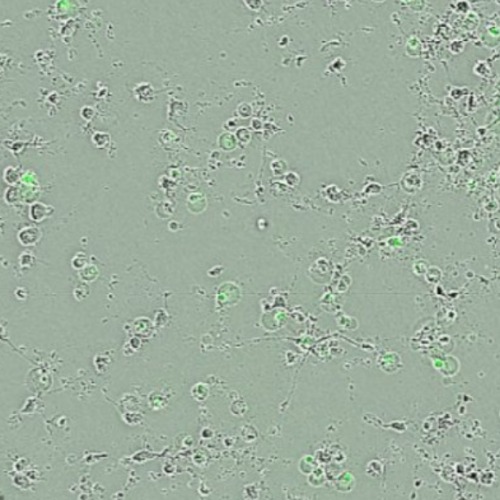

Equipped with high-resolution brightfield and fluorescence imaging capabilities, the Cellcyte 1 supports detailed monitoring of cellular behavior over extended periods. The system features a 5 MP CMOS camera, Olympus 4× and 10× objectives, and three fluorescence channels—Blue, Green, and Red—for versatile imaging applications. It can simultaneously monitor up to six culture vessels, enabling efficient high-throughput experiments and automated time-lapse studies.
The integrated analysis software provides automated tools for confluence measurement, cell counting, apoptosis analysis, spheroid tracking, transfection monitoring, and cytotoxicity studies. Researchers can generate real-time graphs, export data in multiple formats, and conduct uninterrupted long-term experiments with minimal manual intervention. Designed for applications in cancer biology, stem cell research, drug discovery, and immunology, the Cellcyte 1 delivers a powerful combination of precision imaging, automation, and workflow efficiency.
For further information, it is recommended to reach out to a representative from Nuhsbaum. Our representatives are knowledgeable about the Discover Echo Cellcyte 1 offerings and can provide expert guidance and support in selecting the right configuration to meet specific research needs.
