The ECHO Revolve is a cutting-edge automated microscope that transforms live-cell imaging into a fast, seamless, and highly precise workflow. It delivers exceptional clarity and reproducibility, enabling researchers to capture complex cellular dynamics with remarkable speed and confidence.

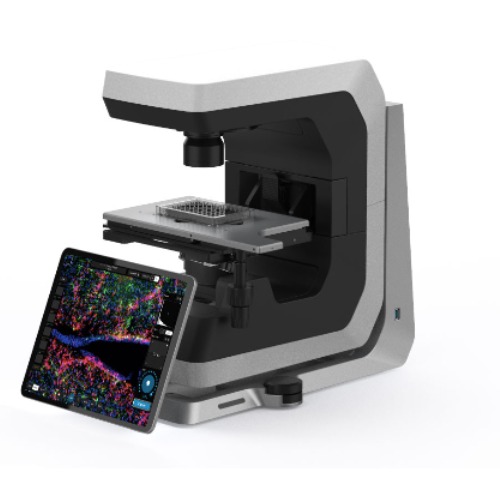

ECHO Revolve
Advanced automated live-cell imaging for fast, high-resolution cellular analysis
ECHO Revolve Specifications
-
- Magnification range: 1.25× to 100× (Olympus® apochromat, fluorite, and achromat objectives)
- Imaging modes: Brightfield, darkfield, phase contrast, polarization, and fluorescence
- System design: Hybrid upright/inverted convertible microscope (“4 microscopes in 1”)
- Fluorescence system: 5-channel LED-based illumination (mercury-free, long-life LEDs ~50,000 hours)
- Camera system: Dual cameras
- 12 MP CMOS color (brightfield)
- 5 MP CMOS monochrome (fluorescence)
- Optics / condensers:
- ELWD condenser (0.3 NA)
- High-resolution condenser (1.35 NA)

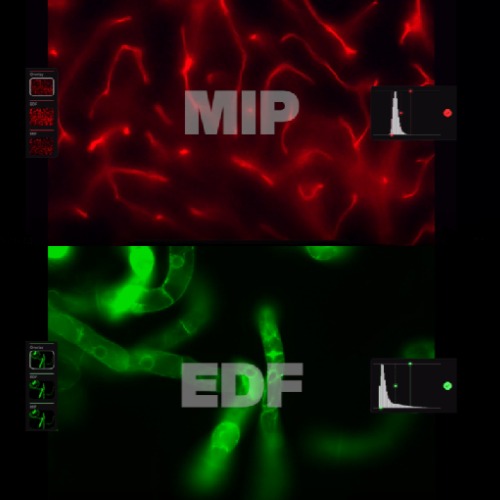

- Z-stack capability: Multi-channel Z-stack acquisition with on-the-fly processing (MIP, EDF)
- Display: 12.9-inch Liquid Retina touchscreen interface

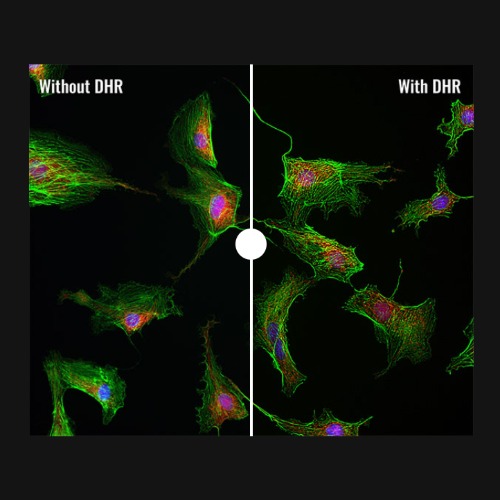

- Software features: Digital haze reduction, image overlay, annotations, measurement tools, cloud/export support

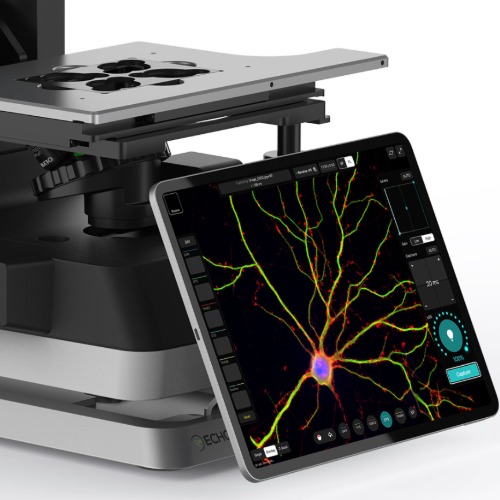

- Interface: Touch-based control replacing traditional eyepieces and mechanical turrets
- Data handling: USB, Ethernet, and cloud transfer (e.g., Dropbox, Box, AirDrop)
For further information, it is recommended to reach out to a representative from Nuhsbaum. Our representatives are knowledgeable about the ECHO Revolve offerings and can provide expert guidance and support in selecting the right configuration to meet specific research needs.
ECHO Revolve Description
The ECHO Revolve is a next-generation automated inverted imaging platform engineered to deliver exceptionally fast, high-resolution visualization of live and fixed biological samples. It replaces traditional microscope workflows with a highly streamlined system that prioritizes speed, precision, and reproducibility at every step.
Its advanced automation enables seamless transitions between imaging modalities, empowering researchers to capture complex cellular events without interrupting experiments or compromising image quality. This dramatically increases throughput while maintaining the fine structural detail needed for demanding high-content studies.
By combining intelligent automation with state-of-the-art optical performance, the system turns microscopy into a scalable, data-rich engine for discovery. Researchers can rapidly generate publication-grade insights from dynamic biological systems, accelerating the path from hypothesis to breakthrough.
For further information, it is recommended to reach out to a representative from Nuhsbaum. Our representatives are knowledgeable about the ECHO Revolve offerings and can provide expert guidance and support in selecting the right configuration to meet specific research needs.
