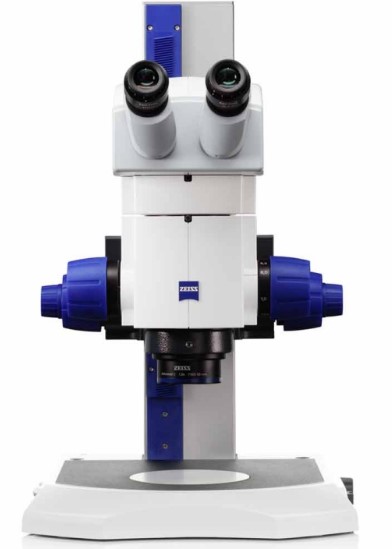

ZEISS SteREO Discovery.V8
ZEISS SteREO Discovery.V8: Advanced Stereo Microscopy Redefined.
ZEISS SteREO Discovery.V8 offers a fusion of precision optics and ergonomic design, ushering in a new era of stereo microscopy. Dive deeper with enhanced depth perception, crystal-clear imaging, and unparalleled ease of use, tailored for diverse research needs.
The ZEISS SteREO Discovery.V8 stands as a testament to ZEISS’s commitment to revolutionizing the world of stereo microscopy. With its trinocular viewing mechanism, the Discovery.V8 boasts an optimized viewing experience, angling at a comfortable 20º. Users can personalize their view with adjustable eyetube distances ranging from 51mm to 75mm, ensuring a tailored observation. The microscope is designed for precision, featuring a manually adjustable focus mechanism that’s accentuated with tactile click stops, allowing for meticulous detail exploration. The package not only includes widefield 10x/23mm focus-adjustable eyepieces but also offers compatibility with additional eyepiece variants like the 16x/16mm and 25x/10, broadening the scope for diverse research needs.
Delving deeper into its capabilities, the Discovery.V8 provides users with a choice among several high-precision objective lenses, each designed to offer unparalleled clarity. The zoom capabilities are particularly impressive, showcasing an 8:1 ratio that extends the magnification spectrum from 10x to a staggering 80x. The stand, an essential component, has been thoughtfully designed to include a 90 white-light LED base, offering a myriad of illumination options from brightfield to adjustable oblique light contrast and unilateral darkfield. The device’s integrated illumination, powered by 90 white-light LEDs, ensures that specimens are always presented in the best light, highlighting even the most intricate details. With its impressive dimensions and backed by a one-year warranty, the ZEISS SteREO Discovery.V8 promises not only advanced functionality but also durability, making it a valuable addition to any lab or research facility.
ZEISS SteREO Discovery.V8 Specifications
- Viewing Mechanism: The device features a trinocular viewing head angled at 20º. The eyetube distance can be modified, ranging from 51mm to 75mm. For imaging purposes, 100% of the light from the right eyetube is directed to the photo port.
- Focus Detail: It comes with a manually adjustable focus mechanism, complemented with click-stop settings for precision.
- Eyepiece Specifications: The package includes 10x/23mm widefield focus-adjustable eyepieces. These eyepieces can accommodate a 26mm reticle. Additionally, 16x/16mm and 25x/10 eyepieces can be procured as detailed below.
- Objective Lens Options: Users can select from a variety of objective lenses:
- 1x Achromat (Working Distance: 63mm)
- 1x Plan Achromat (Working Distance: 81mm)
- 1x Plan APO (Working Distance: 60mm)
- Zoom Specifications: The microscope offers an 8:1 zoom ratio with a magnification spectrum of 10x to 80x. For varied magnification, one can switch eyepieces and the objective lens as required.
- Stand and Lighting: It boasts a track stand fitted with a 90 white-light LED base for transmitted illumination. The stand provides multiple illumination options, including brightfield, adjustable oblique light contrast, and unilateral darkfield. The base dimensions are 322mm in width, 373mm in depth, and 42mm in height.
- Working Distance: This is contingent on the objective lens selected.
- Focusing System: The device offers a dual focusing system – coarse and fine. The column stands at 350mm, offering a lift range of up to 220mm.
- Illumination Features: The integrated 90 white-light LEDs ensure optimal brightfield and darkfield illumination.
- Device Dimensions: 450mm in width, 433mm in depth, and 521mm in height.
ZEISS SteREO Discovery.V8 Description
The ZEISS SteREO Discovery.V8 stands as a testament to ZEISS’s commitment to advancing the frontiers of stereo microscopy. With its state-of-the-art design and features, this microscope promises a transformative experience for researchers and professionals alike.
Precision Optics:
At the heart of the Discovery.V8 is its unparalleled optical system. Crafted with ZEISS’s renowned expertise, the microscope delivers sharp, high-contrast images, ensuring that every detail is captured with impeccable clarity. The enhanced depth perception allows for a more comprehensive view of specimens, revealing intricacies often missed by other systems.
Ergonomic Design:
Understanding the long hours researchers spend at the microscope, the Discovery.V8 has been designed with user comfort in mind. Its ergonomic build minimizes strain and fatigue, allowing for extended periods of use without discomfort. The intuitive controls ensure seamless operation, catering to both novices and seasoned professionals.
Versatility:
The ZEISS SteREO Discovery.V8 isn’t just about power; it’s about adaptability. Whether you’re in biology, materials science, or any other field, the microscope can be tailored to fit specific research needs. Its compatibility with various accessories and imaging systems further extends its utility, making it a versatile tool for diverse applications.
Innovative Features:
ZEISS has equipped the Discovery.V8 with a suite of advanced features. From dynamic focusing systems to specialized lighting solutions, each aspect is designed to enhance the microscopy experience. This innovation ensures that users have the tools they need to push the boundaries of their research.
Ready to elevate your research with the unparalleled clarity and precision of the ZEISS SteREO Discovery.V8? Trust in Nuhsbaum, your authorized Zeiss business partner. Dive deep into the microscopic world with confidence, backed by the expertise and support of a recognized leader. Act now and connect with Nuhsbaum – where innovation and reliability converge.
