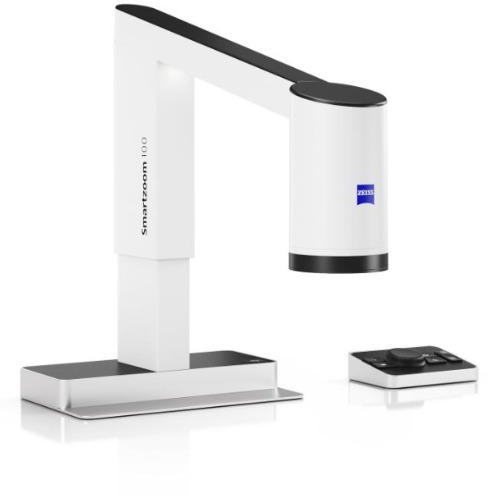

ZEISS Smartzoom 100 Digital Microscope
Advanced, integrated digital microscope engineered for effortless, high-resolution inspection
The ZEISS Smartzoom 100 is a sleek, all-in-one digital microscope built for fast and intuitive optical inspection in industrial settings. It delivers 4K live imagery at 60 frames per second, paired with automatic autofocus and a motorized height adjustment to ensure sharp and clear images at all times. Designed with ergonomics and usability in mind, it features an integrated computer, magnetic objectives, and flexible control options — making it accessible even to users without prior microscopy experience.
ZEISS Smartzoom 100 Specifications
-
Height 390–635 mm, Width 320 mm, Depth 325 mm, Working depth 370 mm; Weight: 10.8 kg.
-
Camera: 4K resolution (3840 × 2160), 8.5 MP, 60 / 50 / 30 Hz, 60 fps.
-
Optical Zoom: 25×.
-

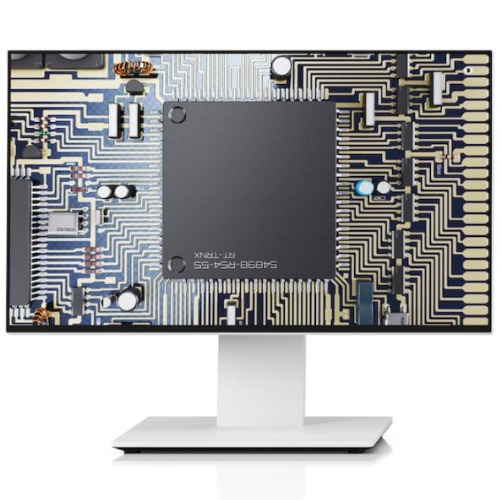

Video Output: HDMI.
-
Aspect Ratio: 16:9.
-
Objectives (4 types):
-
+3: 1.6×–40×, free working distance 330 mm, field of view 16–353 mm
-
+5: 2.8×–66×, free working distance 200 mm, field of view 9.5–210 mm
-
+10: 5.4×–130×, free working distance 78 mm, field of view 4.8–86 mm
-
+25: 13.2×–328×, free working distance 34 mm, field of view 1.9–3.5 mm
-
-
Working Depth (distance from lens to sample): 370 mm.
-
Focus: Automatic autofocus and motorized height adjustment.
-

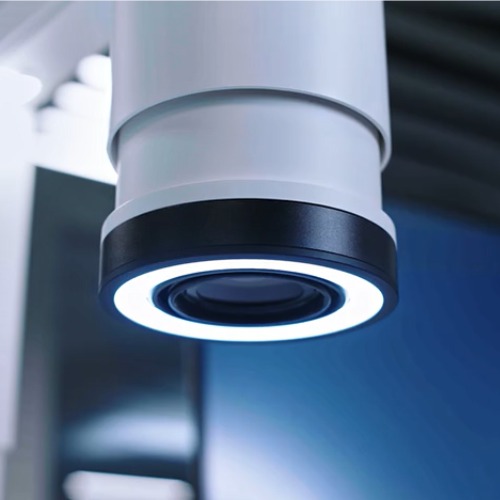

Lighting / Illumination: Ring light with magnetic mount for uniform illumination.
-

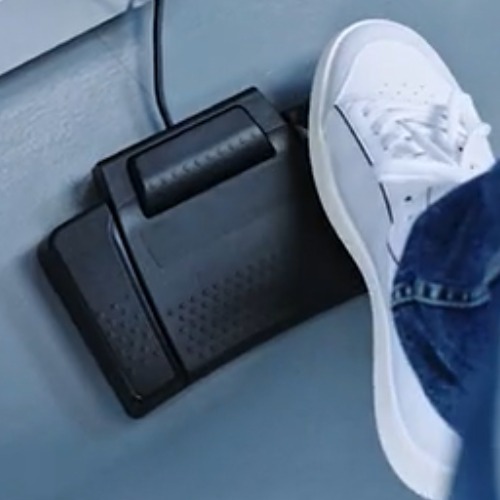

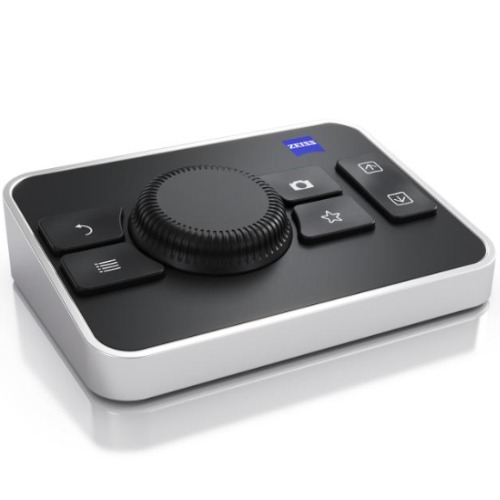

Control Options: USB controller (with tactile wheel), optional foot switch, also works with keyboard + mouse.
-
Built-in Computer: Yes — the microscope includes an integrated computer to run software directly.
-
Working Posture / Usability: Designed for ergonomic use — no eyepieces, which reduces fatigue.
For further information, it is recommended to reach out to a representative from Nuhsbaum. Our representatives are knowledgeable about the ZEISS Smartzoom 100 Digital Microscope offerings and can provide expert guidance and support in selecting the right configuration to meet specific research needs.
ZEISS Smartzoom 100 Description
The ZEISS Smartzoom 100 is a sleek, all-in-one digital microscope built for industrial and quality-control environments. It features a 4K (3840 × 2160) camera that delivers 60 frames per second, providing real-time live views with minimal delay and high image clarity. Designed with no eyepieces, the system reduces operator fatigue and supports a more ergonomic working posture.
Under the hood, the Smartzoom 100 is engineered for precision and ease of use. It comes with automatic autofocus and a motorized height adjustment, ensuring consistent sharpness without manual tweaking. The objectives attach magnetically, allowing quick switching across a 25× zoom range while maintaining a generous 370 mm working depth for inspecting a variety of part sizes.
Control and operation are made simple and flexible: users can operate the microscope via a tactile-wheel controller, or optionally use a keyboard/mouse or foot switch. All necessary software runs on an integrated computer inside the microscope itself, making setup fast and eliminating the need for external workstations. Add in a ring light (also magnetically mounted) for even illumination, and you’ve got a powerful, streamlined tool for detailed inspection tasks.
